What are the colors on building glass?

There are several ways to produce color commonly used in glass:

① Tinted Glass.
② Silk Screen printing/Ceramic Fritted/ Digital Printed Glass.
③ Glass Color by Reflective Coating or Low-E Glass.
④ Colored PVB Film Laminated Glass.

Tinted Glass

Common body tinted glass mainly F Green, Euro gray, Euro tea, crystal gray, light blue, dark blue, brown, black glass, and so on.

The color of the body coloring glass deepens as the thickness of the glass increases, that is, the deeper the color of the colored glass of the same color is, the heavier the color is.

Affect the application of colored glass in the construction of several main factors:
① Colored glass through the color of the coloring, a long time easy Have visual fatigue.
② The amount of colored glass relative to ordinary white glass is much less, the total output of less than 10% of ordinary glass. Converting from producing white glass to colored glass or from one colored glass to another colored glass produces a large number of over-color products. These over-color products are often only sold at low prices, resulting in the cost of colored glass being higher than ordinary white glass.
③ colored glass is often stage production, and different manufacturers of colored glass can not be completely interchangeable. This led to large-scale projects from the perspective of supply security, the choice of colored glass more cautious.

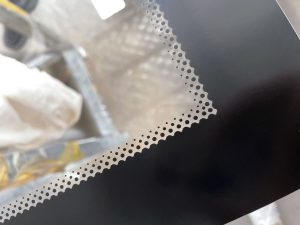

Silkscreen Printed Glass

Silkscreen glass or ceramic frit glass are produced by printing inks on glass.

Screen printing glass generally refers to the use of high-temperature ink printing glass, the ink itself is usually opaque.

The color of the pigment basically determines the color of the final glass.
The paint colors are based on Panston and Raul’s colors.

Pantone color card is invented by the Americans is an internationally accepted standard color card, color card has a common color of the label, each “color number” represents a color.

In addition to Pantone color cards, there is a Raul color card, basically the same as Pantone, but only invented by Germans. These two-color cards are world-renowned color authority and cover color communication systems in the fields of printing, textiles, plastics, graphics, and digital technology. They have become the internationally accepted standard language for the exchange of color information today.

Colored Reflective Coated Glass/Low-E Glass

The color of the coated glass is the result of the combined action of the glass substrate and the film.

The lower the reflectance of the coated glass, the greater the reflection color of the substrate on the overall coated glass. At present, the coated glass has three or more layers, and the color of the coated glass is the result of the cooperation of all the layers.

The material properties of each layer and the interference color of the layer thickness together form the color of the layer.

When we look at the color of the curtain wall glass, what we actually see is the color of the glass reflection. The results we observe are greatly influenced by environmental factors. The same piece of coated glass is observed under different light conditions. The difference is huge.

Conventional coated glass color what?

Not considering the use of colored substrates, the conventional coated glass colors are mainly colorless (natural color), blue-gray color. Colorless series of films tend to be a very light color, showing the true qualities of the glass, commonly used in high lighting or permeability requirements of the relatively high building; conventional coated glass products are more blue-gray series, this series of films actually Film material and structure is not very different, but the difference between the level of reflectivity and color blue or gray partial difference.

Colored PVB Laminated Glass

Colored Laminated Glass uses two pieces, or multi pieces glass, best quality float Annealed glass, flat or curved tempered glass, tinted, reflective glass, Low-E glass, silkscreen printed glass for based.

The interlayers are with thickness of: 0.38mm 0.76mm 1.14mm 1.52mm 1.9mm 2.28mm

PVB color: Clear, frosted, white, black, milky, red, green, blue, yellow etc.

When the glass is broken, it is still pasted onto the film so that is also called safety glass.

After the PVB or SGP interlayers have been placed between the glass sheets, the whole assembly is subjected to heat and pressure.

This makes the complete adhesion of the PVB or SGP interlayers and the glass becomes the Laminated glass.

The color depends on PVB color or glass color.

Glass Category: Flat Float Tempered glass, Low iron tempered glass, Curved Glass, Insulated Glass, Laminated Glass
