China Windows and doors Insulating Glass Unit Manufacturers

What’s the Insulated Glass:

Insulated glass, also named insulated double glazing, double glazed panels, or double glazed units.

It’s a hermetically sealed multi-class combination consisting of two or more panes separated by a spacer filled with high efficient desiccant.

To ensure the sealing effect, first sealing is finished by polysulfide adhesive and second by the structural sealant.

Production Line:

Glass Component:

Glass Thickness: 4 Mm- 19mm (glass)

To choose two Pieces or 3 Pieces, and Multi Pieces Glass

Glass Colors: Best Quality Clear Float Glass, Low Iron Glass, Pattern Glass, Tinted Glass, Ceramic Frit Printed Glass

Solar Reflective Coating Glass

Hard coated low-E coating (also named as online low-E, or pyrolytic coated low-E).

Soft-coated low-E glass, also known as off-line low-E: Single Silver, Double Silver, Triple Silver.

Glass Materials:

Glass Spacer: Aluminium spacer, Stainless steel spacer, Thermal break spacers, Non-metal materials, such as super spacer, TPS

Spacer Thick: 6mm,8mm,9mm,10mm,12mm,16mm,18mm,24mm, As Customized Design.

Secondary Sealant:
There’re two kinds of sealants used in insulated glass: Structural sealant & polysulfide sealant.

polysulfide sealant: Excellent resistance to high&low temperature and sealing performance.

Structural silicon Sealant: High elasticity and high modulus, long lifetime, better structural performance.

Tempering Type: Flat or Bent Tempered Insulating Glass

Gas Options: Air, Argon

Sealant Options: PIB, silicon Sealant, Structural silicon Sealant, Polysulfide Sealant

Glass Standard EN1279, ANSI4666, IGCC, GBT11944, 10 years warranty

Holes or Cutouts: Customized.

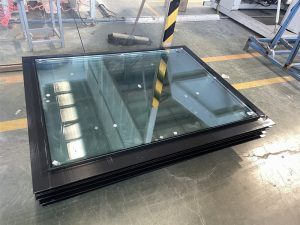

Stepped Insulating Glass

When it comes to the semi-stick glass curtain wall or glass skylight, stepped insulated glass, or offset insulated glass is used.

Silicon sealant can be applied on the glass edge to make it keep the uniform color as glass sealant.

Perforated IGU
Insulated glass can also be used in point-supported glass facades instead of tempered glass and laminated glass.

To fix the spider and claw safety, we can supply insulated glass with perforations, sealed with aluminum Drings for better and safe installation.

U Channels
The U channel will be embedded with the aluminum frame and work as a supporting point for the glass, this will cause bigger and thicker spacer (over 20mm) and increased glass costs.

Insulated Glass Features:

1. Thermal Insulation
2. Sound Insulation
3. Dew Free
4. Light Weight
5. Long Lifetime

What Type of Insulated Glass we can Produce:

1. Normal annealed float insulated glass

2. Tempered safety insulated glass

3. Tempered laminated insulated glass

4. Double laminated insulated glass

5. Triple insulated glass

6. Triple laminated insulated glass

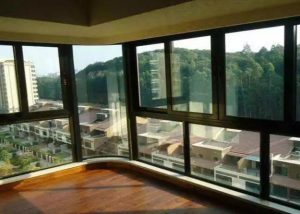

Applications:

The insulated glass has high energy saving and soundproof, anti UV rays, so insulated can widely be used in

-curtain wall glass,

-glass facade,

-double glazing units window glass panel,

-double glazing partition.

-especially residential windows and curtain walls.

Product Package:

China Eliterglass Manufacture Triple Silver Low-E Insulated Glass

Eliterglass-China Factory TPS Insulating Glass Introduction

Eliterglass Double Glazed Low-E Insulated Glass Products Configuration
