Eliterglass High-performance Energy Saving Glass

What’s High-Performance Glass?

High-performance energy-saving glass refers to architectural glass products

that are made with coating, insulating, and vacuum technology and have significant thermal insulation effects.

High-Performance Glass Classifications,  Insulated glass, vacuum glass, vacuum insulated glass, heat mirror insulated glass.

The glass is mainly used in passive houses, have the feature as below:

1. Ultra-low energy consumption

More than 90% energy saving than ordinary buildings.

2. Healthy and comfortable

Summer: temperature≤26℃, humidity≤60%, winter: temperature≥20℃, humidity≥30%.

3. Sound insulation and noise reduction

Passive doors and windows are effective in sound insulation and noise reduction.

SPECIFICATION:

Glass coating: Lower and lower emissivity coated glass from single silver, double silver, triple silver.

Spacer materials: aluminum spacer, stainless spacer, warm edge spacer, composite warm edge spacer to TPS.

Glass makeup: From single glass to insulated glass, triple glass units, and then vacuum glass. and new products, heat mirror insulated glass, aerogel glass, smart glass, etc.

Argon-filled insulating glass VS warm edge spacer insulating glass

1. For most conventional window types, choosing to fill the insulating glass with argon gas and replacing the aluminum spacers with warm-edge spacers can reduce the entire window U value by about 0.1-0.2W/m2K”.

2. For double glazed units with 12mm spacer, the influence argon is better than using a warm edge.

3. For the triple glazed units, whether it is 12mm or 15mm spacer, warm edge spacer has much better thermal insulation performance than argon-filled glass units. Especially for the 15mm, the reduction of U value is almost twice that of argon-filled units.

4. After using the warm edge, the thermal insulation performance of the whole window is more balanced, and there are no obvious weak parts in the window. While using argon filling, the balance of thermal insulation performance of each part of the window has been further broken.

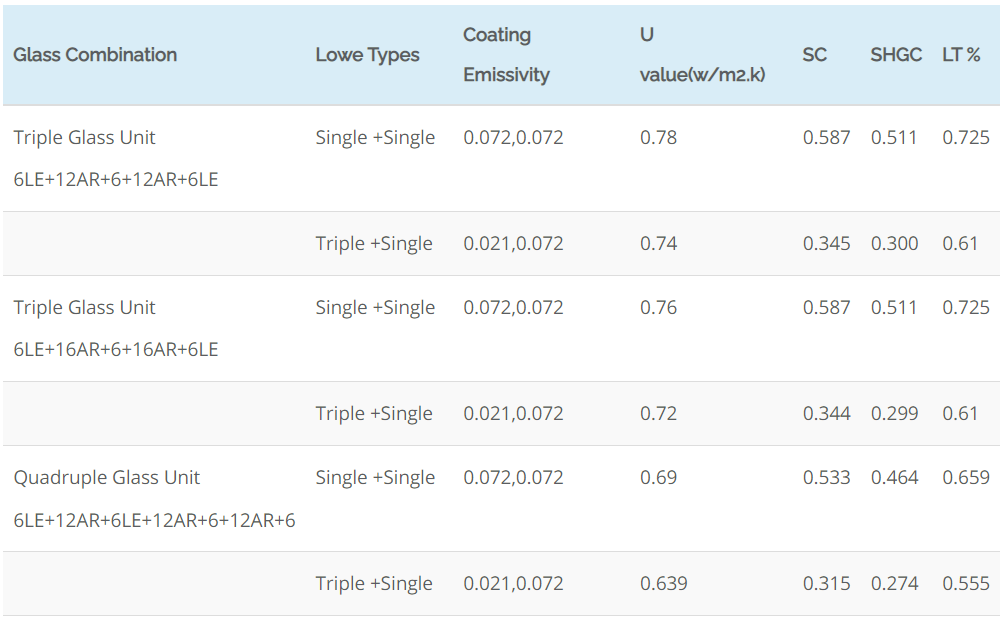

Below shows the insulated glass U value.

Above data are calculated based on WINDOW7.3, 90% argon content, as Window will calculate the glass center U value, increased glass edge performance result from warm edge spacers cannot be calculated here.

Eliterglass is able to manufacture, supply deliver to worldwide all kinds of high-performance energy-saving glass, including double and triple silver low-E coatings glass, warm edge space glass, triple insulated glass units, etc.
