Eliterglass Curved Bent Double Triple Glazing Safety Insulated Glass Manufacturer

Specification:

Insulated Glass base: To choose two Pieces or 3 Pieces, and Multi Pieces Glass

Glass Colors: Best Quality Clear Float, Low Iron, Pattern, Tinted, Printed, Reflective, Low-E Glass Various Combinations.

LOWE Option: Single Silver, Double Silver, Triple Silver.

Thickness :3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm.

Aluminum Spacer: 6mm,8mm,9mm,10mm,12mm,16mm,18mm,24mm, As Customized Design, Alum Spacer, or Warm Spacer.

Holes or Cutouts: Customized.

Size: Max 3660mm×18000mm, Min: 600mm×400mm

Minimum Radius of Curvature: 450mm, Radius depends on the glass size.

Tempering Type: Flat or Bent Tempered Insulating Glass

Curved or Bent Tempered Safety Insulated Glass Type:

1. Double glazing insulated glass

2. Triple glazed insulated glass

3. Ceramic Friited Printed insulating glass

4. Tempered laminated insulated glass

Products Standard

Eliterglass comply with China CCC GB11944, Europe CE EN1279, America IGCC ASTME2190, Australia CSI AS/NZS4666

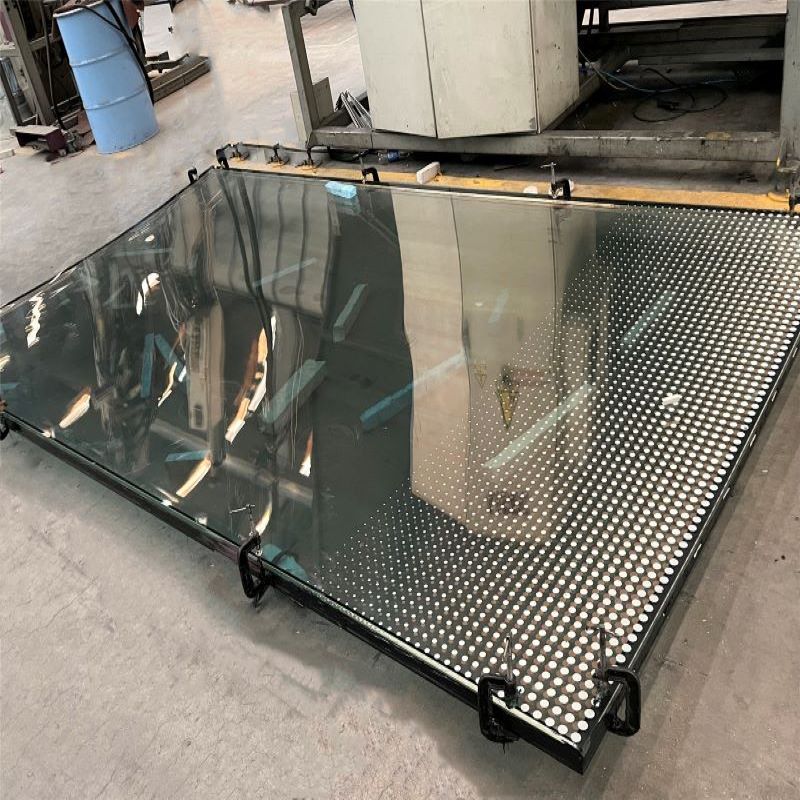

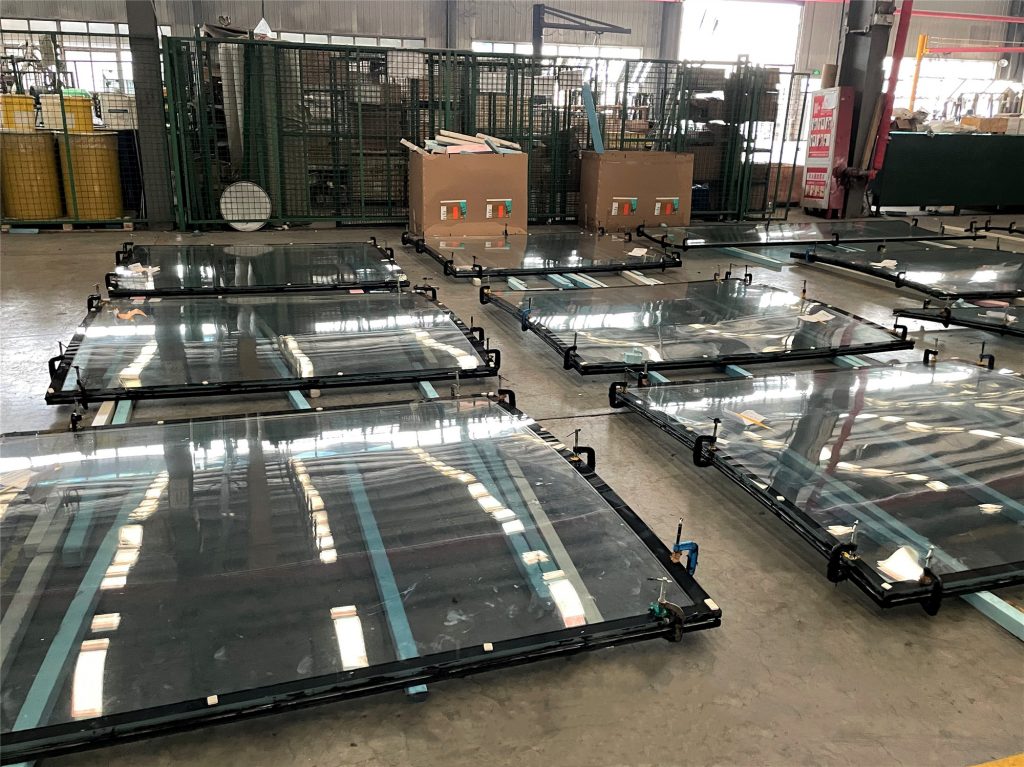

Bent Customized Insulated glass in Processing.

Energy Efficient Glazed Hollow Insulated Characteristic：

1. Optical Properties

The visible light transmittance of insulated glass systems is normally in the range of 70-80% and the visible light reflectance is in the range of 10-48%;

2. Thermal Properties

The U-value is effectively lowered by double glazing units and can be further reduced by filling of inert gases like argon gas:

3. Acoustical Insulation

Insulated glass has a good soundproof function, can reduce noise by more than 30 dB;

4. Condensation

The dew point of Eliter insulating glass is below -65 ℃ which guarantees no condensation formation under normal applications;

5. Sealing

The aluminum spacer is automatically curved and formed with the fewest joints and dual seals are applied, which ensures excellent
sealing characteristics and long application lifetime.
