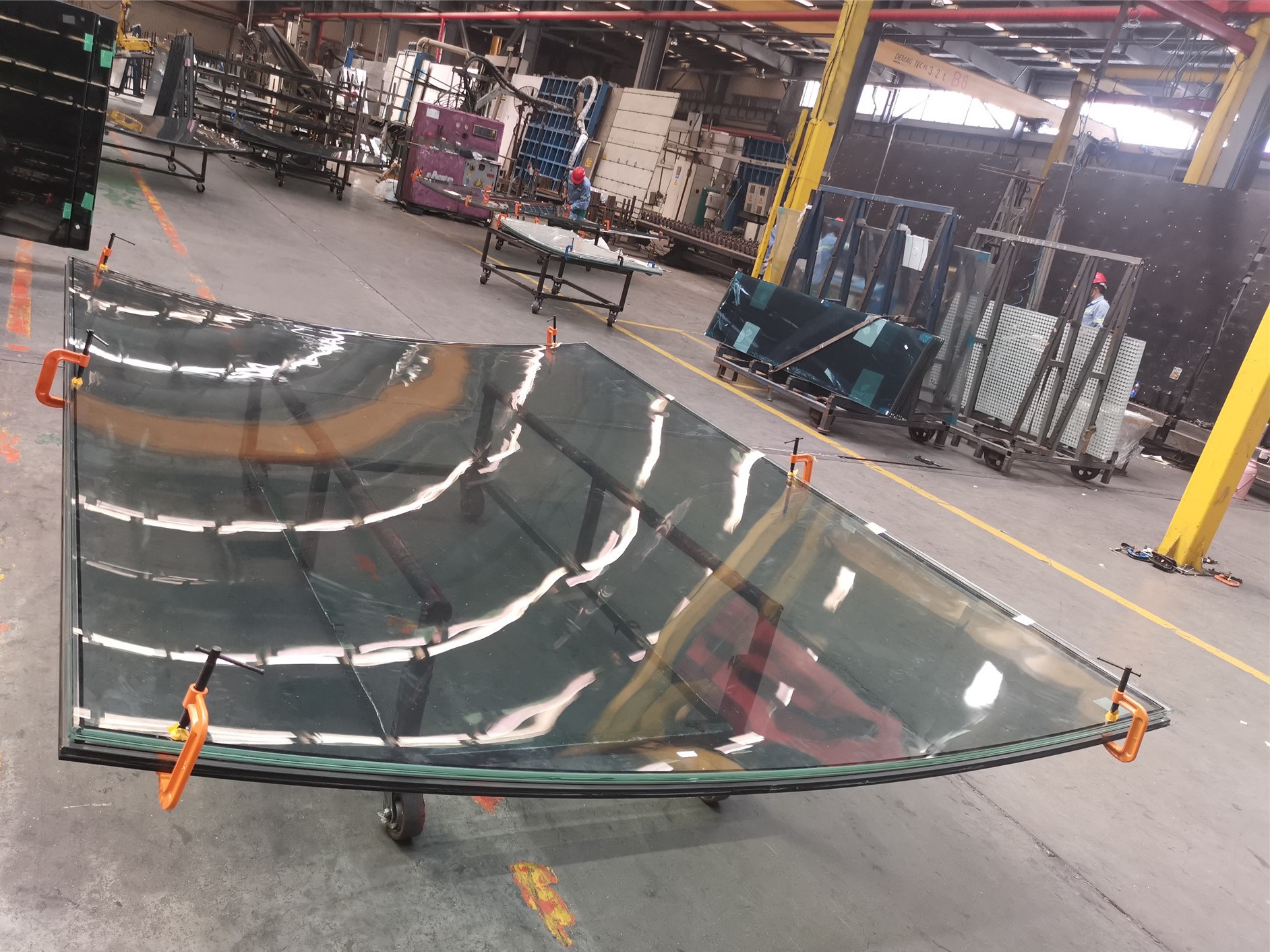

Curved Bent Insulated Double Glazing Glass Unit Insulating Glass

Product Description:

Curved Insulating Glass is also called Insulated glass/Hollow glass/IGU/Double glazing glass and so on.

It is made of two or more pieces of Curved tempered glass sheets and used sealant gumming and aluminum spacers which were filled with desiccant together.

The hollow part is filled with dry air or inert gas with primary and secondary sealants.

We Mainly Supply Flat and Curved Tempered safety insulated glass, Double glazing insulated glass, Triple glazed insulated glass, Silk Screen Printed insulating glass, Tempered laminated insulated glass, Low-E insulated windows and doors glass, etc.

High-Performance Insulated Glass Unit( IGU)Characteristic:

1. Optical Properties
The visible light transmittance of insulated glass systems is normally in the range of 70-80% and the visible light reflectance is in the range of 10-48%;
2. Thermal Properties
The U-value is effectively lowered by double glazing units and can be further reduced by filling of inert gases like argon gas:
3. Acoustical Insulation
Insulated glass has a good soundproof function, can reduce noise by more than 30 dB;
4. Condensation
The dew point of Eliter insulating glass is below -65 ºC which guarantees no condensation formation under normal applications;
5. Sealing
The aluminum spacer is automatically curved and formed with the fewest joints and dual seals are applied, which ensures excellent sealing characteristics and a long application lifetime.

Application:
The insulated glass has high energy saving and soundproof, anti UV rays, so insulated can widely be used in
-curtain wall glass
-glass facade
-double glazing units window glass panel
-double glazing partition
-especially residential windows and curtain walls

Package and Loading:

1. Strong wooden crates
2. Safety for overseas transportation
3. The max weight of each wooden crate is 1.5-2 tons
