6+12A+6mm Low-E Insulated Glass
Insulating Glass is also called Insulated glass/Hollow glass/IGU/Double glazing glass and so on.
Insulated Glass is made up of two pieces or several pieces of glass which is bonded with an aluminum frame with desiccant in it in order to dry the air, and then it is secondary sealed with silicone sealant.
Low E Insulating Glass is a product that uses one or two pieces of Low E glass. It can reduce heat transfer and increase the energy-saving effect.
Specification:
Insulating Glass base: To choose two Pieces or 3 Pieces, and Multi Pieces Glass
Glass Colors: Best Quality Clear Float, Low Iron, Pattern, Tinted, Printed, Reflective, Low-E Glass Combinations.
LOWE Option: Single Silver, Double Silver, Triple Silver.
Thickness: 5+9A+5mm; 6+12A+6mm; 6+16A+6mm; 8+12A+8mm; 8+16A+8mm etc
Aluminum Spacer: 6mm,8mm,9mm,10mm,12mm,16mm,18mm,24mm, As Customized Design, Alum Spacer, or Warm Spacer.
Holes or Cutouts: Customized.
Tempering Type: Flat or Bent Tempered Insulating Glass
Glass Processing:
Stepped Insulating Glass
When it comes to the semi-stick glass curtain wall or glass skylight, stepped insulated glass, or offset insulated glass is used.
Silicon sealant can be applied on the glass edge to make it keep the uniform color as glass sealant.

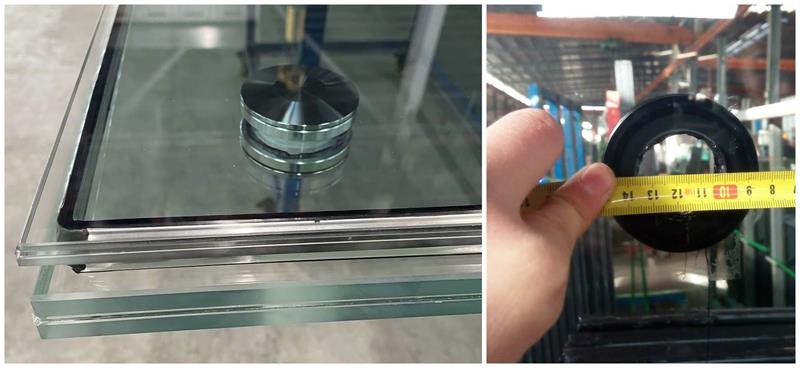

Perforated IGU
Insulated glass can also be used in point-supported glass facades instead of tempered glass and laminated glass.
To fix the spider and claw safety, we can supply insulated glass with perforations, sealed with aluminum drings for better and safe installation.

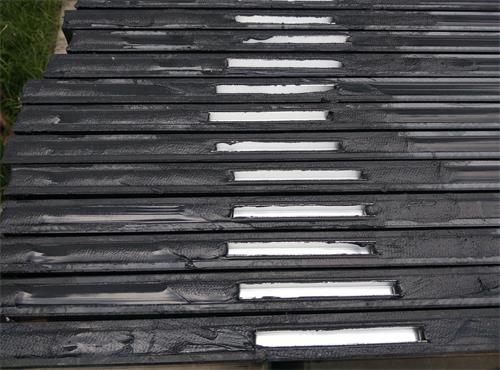

U Channels
The U channel will be embedded with the aluminum frame and work as a supporting point for the glass, this will cause bigger and thicker spacer (over 20mm) and increased glass costs.
What Type of Insulated Glass We also can Produce
1. Normal annealed float insulated glass
2. Tempered safety insulated glass
3. Tempered laminated insulated glass
4. Double laminated insulated glass
5. Triple insulated glass
6. Triple laminated insulated glass
7. Low-E insulating glass
Application:
The insulated glass has high energy saving and soundproof, anti UV rays, so insulated can widely be used in
-curtain wall glass,
-glass facade,
-double glazing units window glass panel,
-double glazing partition.
-Especially residential windows and curtain walls
