Eliterglass Manufacture Triple Layer LOWE Glazed Insulating Units Glass

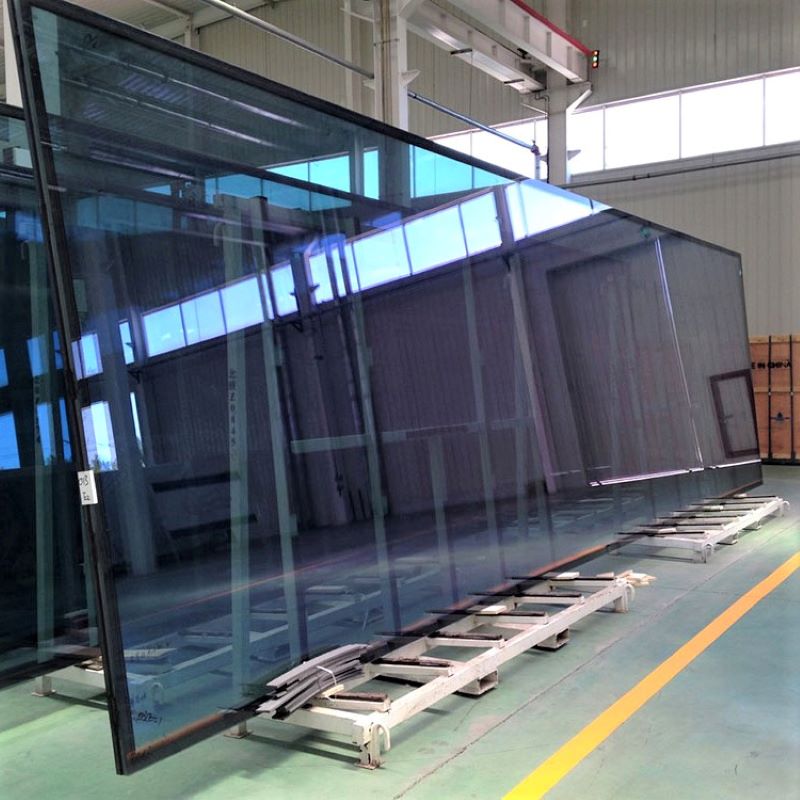

Flat or curved, double or triple glazed units with a maximum dimension of up to 3.6 m x 18.0 m.

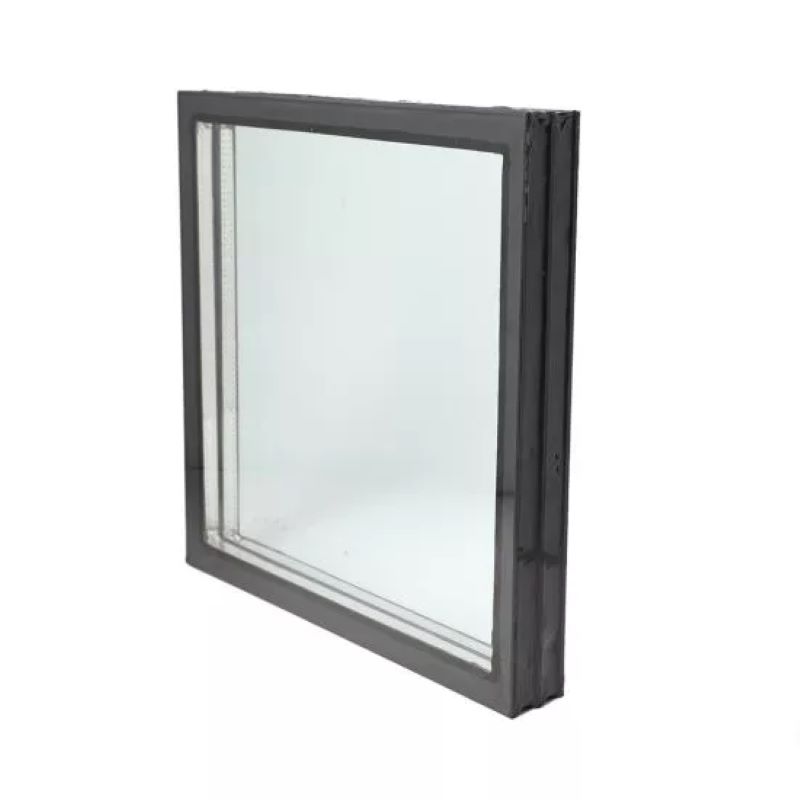

Insulating Glass Units, can be provided as double glazed or triple glazed. In combination with our High-Performance Coatings and Argon gas

filling, U-Values of 0,50 W/m²K are achievable.

Specification:

Insulated Glass base: To choose two Pieces or 3 Pieces, and Multi Pieces Glass

Glass Colors: Best Quality Clear Float, Low Iron, Pattern, Tinted, Printed, Reflective, Low-E Glass Various Combinations.

LOWE Option: Single Silver, Double Silver, Triple Silver.

Thickness :3mm 4mm 5mm 6mm 8mm 10mm 12mm 15mm 19mm.

Aluminum Spacer: 6mm,8mm,9mm,10mm,12mm,16mm,18mm,24mm, As Customized Design, Alum Spacer, or Warm Spacer.

Holes or Cutouts: Customized.

Size: Max 3660mm×18000mm, Min: 600mm×400mm

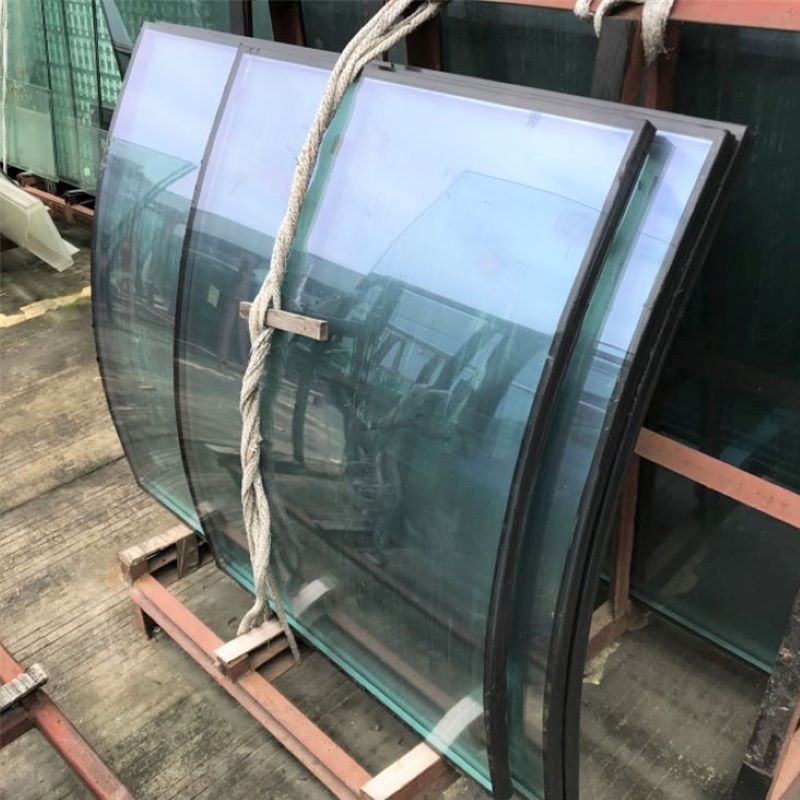

Minimum Radius of Curvature: 450mm, Radius depends on the glass size.

Tempering Type: Flat or Bent Tempered Insulating Glass

What Type of Insulated Glass We can Produce

1. Normal annealed float insulated glass

2. Tempered safety insulated glass

3. Tempered laminated insulated glass

4. Double laminated insulated glass

5. Triple insulated glass

6. Triple laminated insulated glass
