Pivot Door Shower Enclosure Curved Bent Glass
Qingdao Eliter Glass -an excellent provider and manufacturer of professional shower door toughened glass in China.
Our Company
We exported and manufactured the architectural and interior glass products including, 3-19mm tempered glass, laminated safety glass, insulated glass, curved glass, oversized glass, low-E glass, special glass, shaped glass, frosted glass, mirror glass, Ceramic Fritted Glass, railing glass, shower door glass, etc.
We have been working in the building safety glazing glass field since 2009.
By providing an excellent product, service, and solutions, become the most reliable and valuable partner.
Delivery Time:
In 2-3 weeks after order confirmation the order.
Raw Glass Choose:
Raw Glass brand: CSG, Xinyi, Yaohua Pilkington Glass Group, Jinjing Group, Taiwanglass Group.
Choosing the brand, quality stable raw glass suppliers, and pursuing the quality’s processing manufacturer can be chosen to ensure the interests of yours.
Product Description:

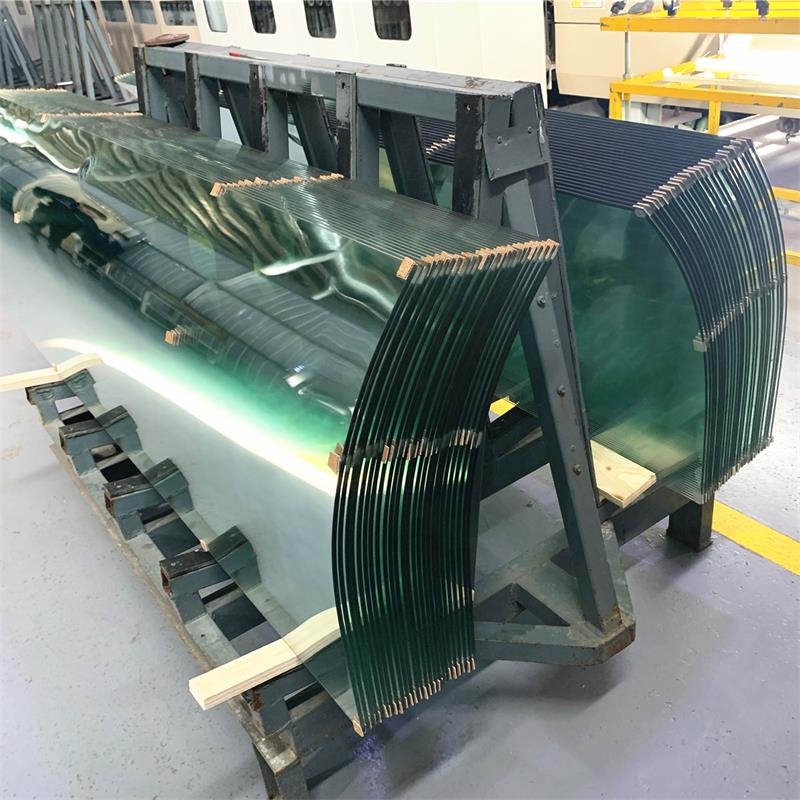

Shower door Curved Glass is a kind of tempered glass that adds a bending procedure, it also belongs to safety glass.

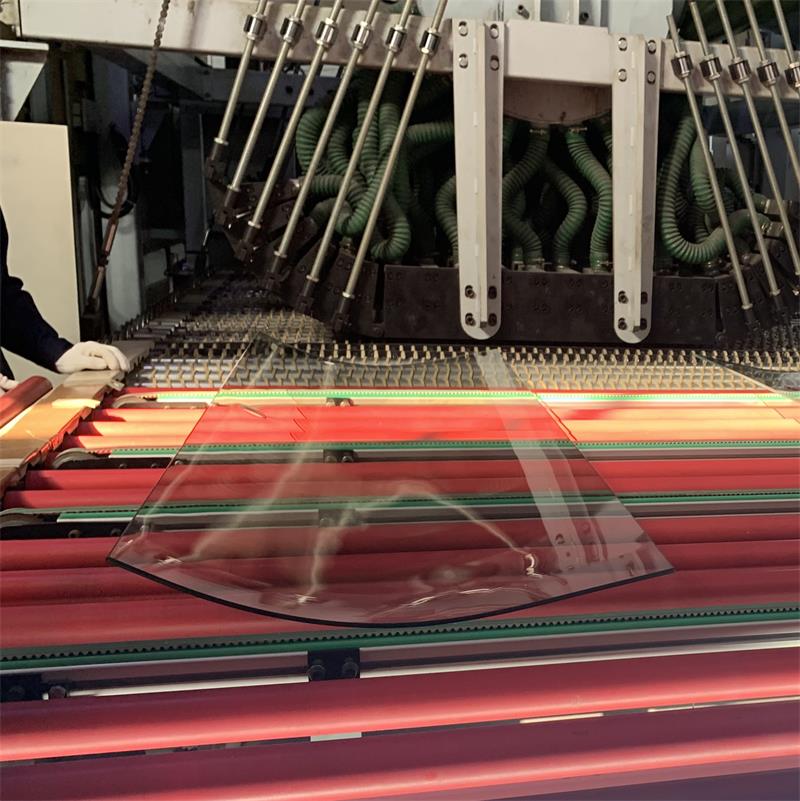

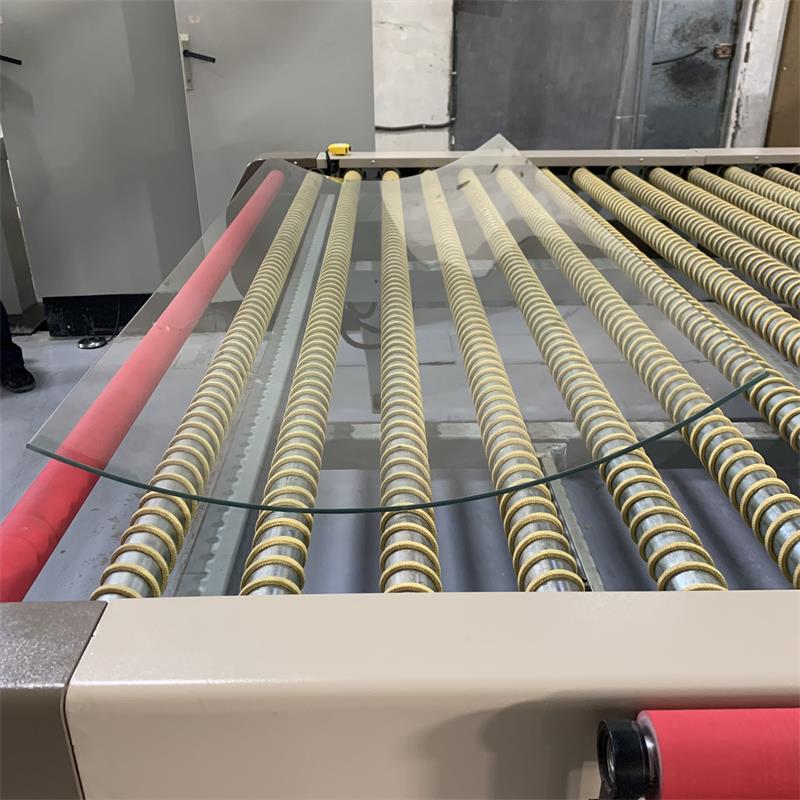

It is also known as curved safety glass. Its proceeding is obtained by cutting the normal one into the required size, and then heating it to near 700 ºC, when it is softened, bending it into the required shape or radian, then quickly and evenly cooling.
It has a maximum and minimum arc limit for each thickness, but it can only be a standard arc radius.
| Products Info | |
| Glass | Shower Door Curved Tempered Glass |
| Tempered Technics | Physically Tempered |
| HS Code | 7007190000 |
| Specifications: | |
| Glass Thickness | 4mm, 5mm, 6mm, 8mm, 10mm |
| Glass Option | Clear glass, Low iron Glass, Tinted Glass |
| Max Size | 380*2300mm |
| Min Size | 450x450mm |
| Minimum Radius of Curvature | 450mm, Radius Depends on the Glass Size |
| Curved Styles: | C Curved & J Curved toughened |
| Processing: | |
| Glass Tolerance | ±1mm |
| Edge Work | Matt/Polished Edge |
| Holes Drilling | Diameter Ø 4- 60mm |

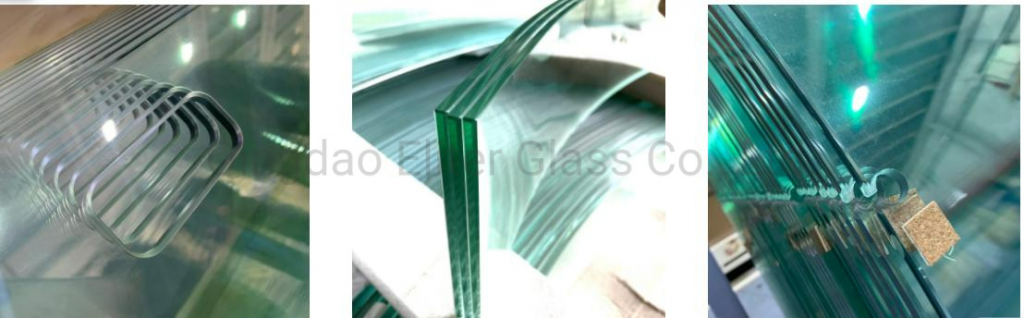

Polished Flat Edge Work and other Details Process
